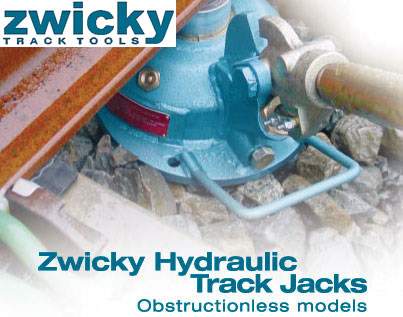

Zwicky track jacks have been used by maintenance
teams throughout the world for over 70 years, and have acquired a well-earned
reputation for being the most durable and effective tool of its type
on the market.
The 805BR Toe Jack heads up the range with a capacity of 8 tonnes whilst
the 1054 Pan Jack is capable of 10 tonnes. Despite the Pan Jack's low closed
height of 95 mm, it boasts a 101mm lift, thanks to its telescopic hydraulic
ram. Both jacks, like their 20 tonne F1527 big brother, are obstructionless.
The standard range is completed with the obstructionless Zwicky SB7417
Track Aligner, a unique product design chat is used for the |
|
aligning and slewing of track, points and
crossings. AII models are fitted with an overload safety valve.
Standard paint finish is hammered blue - alternative colour coding is available
upon request. All models are available with either standard operating levers
or insulated, which are specifically designed for third rail applications.
Other jacks in the range including the 5O5, 605, F500 and 1303, are also
supported with spare parts and service.
 |
CONTACT FORM >>>
|
Arbil
Ltd. Providence Street, Lye, Stourbridge, DY9 8HS
T:
+44 (0) 1384 424007
F: +44 (0) 1384 898814
E: rail@arbil.co.uk |
Zwicky 8t Toe Jack - (Type B) Model No. 805BR
| Safe Working Load |
8t on head
5t on toe |
| Closed Height |
235mm head
95mm toe |
| Toe to head |
140mm |
| Lifting stroke |
90mm |
| Weight of jack |
18.5kg |
|
 |
| The 805BR comes fitted with an overload safety valve
and is tested to 25% over its rated capacity. The jack is obstructionless
for rails of 42kg/m and over and can be placed under the rail without
removal of ballast. |
Zwicky 20t Toe Jack - (Type C)
Model No. F1527
| Safe Working Load |
20t on head
15t on toe |
| Closed Height |
343mm head
191mm toe |
| Toe to head |
152mm |
| Lifting stroke |
110mm |
| Weight of jack |
36kg |
|
 |
The F1527 has a capacity of 20 tonnes on the head and
like the 805BR, it comes fitted with an overload safety valve and
is tested to 25% over its rated capacity. The jack is designed
for use on switches and crossings and is obstructionless for rails of 42kg/m
and over. |
Zwicky 10t Pan Jack - (Type D)
Model No. F1054
| Safe Working Load |
10t |
| Closed Height |
95mm |
| Toe to head |
196mm |
| Lifting stroke |
101mm |
| Weight of jack |
16.5kg |
|
 |
| The F1054 Pan Jack is placed under the rail without
removal of ballast. And despite its impressively low height of just
95mm, the F1054 is capable of 101 mm of lift thanks to its telescopic
hydraulic ram. |
Zwicky 8t track Aligner - (Type
J) Model No. SB7417
| Safe Working Load |
8t |
| Sroke |
152mm |
| Weight of jack |
24.2kg |
|
 |
| The Zwicky Track Aligner is specifically designed for
the aligning and slewing of track, points and crossings. The swivel
head design of its hydraulic ram allows it to be positioned against
the web of any rail as required, including flat bottom rails. |
|
